Products
Application
ZnSe Window for IR Transmittance
Transmittance measurement
IR transmittance
An optical set-up for the characterization of devices across the visible to IR spectrum
Any window of MPS can be replaced with one suitable for your experiment.
Humidity–Temperature Sensor
Humidity Sensor
Humidity Controller
Humidity-Temp.sensor Specification
Typ. RH
Accuracy(%RH)
Typ.
Temperature(°C)
2%RH
@0-100%RH
0.2 °C
@0-90 °C
Fully calibrated, linearized,
and temperature compensated output.
Humidity-Temperature sensor can be installed inside the entire chambers optionally.
Precision Humidity Controller
Humidity Sensor
Humidity Controller
The Precision Humidity Controller consists of a humidity-temperature sensor, 2-channel MFCs, DI water bath, and software.
Nitrogen or air cylinder is required as a carrier gas to supply moisture.
Through feedback from the humidity-temperature sensor installed inside the chamber, one MFC supplies wet gas and the other supplies dry gas.
PID humidity control method is adopted for quick and precise humidity control.
Polymer Capacitance Measurement Fixture
* This is not an off-the-shelf product and is supplied through customized manufacturing
by consultation with customers.
Polymer Capacitance Fixture
It is useful to measure the electric property of a sample in gel-state or a polymer film.
Especially, the reliability of the measurement can be improved by one probe module because it can give a constant contact-pressure.
In addition, a uniform electric field by a guard ring improves the precision of the measurement.
It makes the measurement convenient to use a well-defined top electrode.
Polymer Capacitance Fixture
Useful Options to Help with Mounting and Probing
Miniature positioner
Micro Positioner

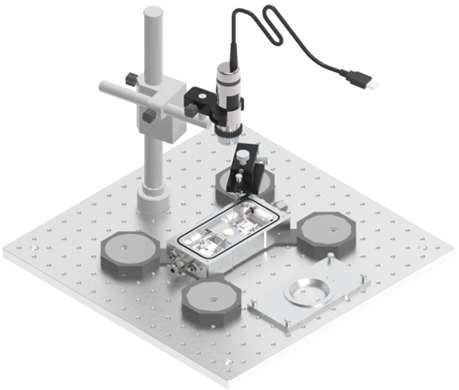

350 x 350 mm breadboard has a lightweight (only 2.3 kg) and can be conveniently
mounted with options such as digital microscopes and external XYZ micro positioner module.
Digital Microscope
(Optional)
Miniature positioner
Micro Positioner
External XYZ Micro Positioner Module
(Optional)
Miniature positioner
Micro Positioner
Optical Table
(Optional)
Miniature positioner
Micro Positioner
